CNC Turning & CNC Milling
PRECISION CNC TURNING & MILLING SERVICES
Having been in this business since 1987, Ed’s Precision Manufacturing, LLC of Houston, TX has acquired machine knowledge, tradition, and experience to accommodate all your CNC turning and milling needs. As we like to say here on our shop floor, “If you can draw, we can make it”.

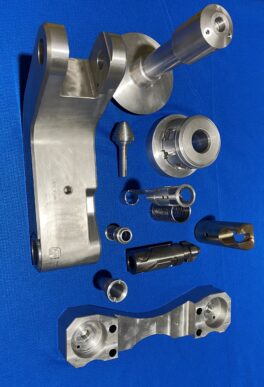

Our CNC Lathes/CNC Mills are proficient in MasterCam 3D Model, BMP, IGES, STEP, and TIFF. We can manufacture your OEM parts and all grades of material including carbon steel, cobalt, aluminum, bronze, titanium, and duplex materials with contour turning, form turning, taper turning, or straight turning. Our CNC Lathe 2, 4, 5, 10 axis machines are capable of working on parts as small as 1/16 of an inches to 25″ diameter up to 6 feet in length. The CNC Mill/4 axis has 40″ x 60″ in length of table with 18″ 4-axis capacity, and our Horizontal CNC Mill with a working window of 3’x3′ space. Furthermore, we also work with nylon, delrin, peak plastic, and PVC and fully include OEM parts, heat treating, UT, mag. particles, and plating tolerance as tight as .0004.
We can provide emergency turnaround on any and all requests. It’s just one of many abilities that puts us above the rest. For more information about Ed’s Precision Manufacturing LLC, please consult the chart below, call us today at 713.956.1112, or email us at sales@edsprecision.com.
PRECISION CNC TURNING & MILLING CAPABILITIES
| Machining Processes | Parting/Cutting Facing Turning:
| Internal Forming Knurling Boring Drilling Counterboring Countersinking Pocketing Profiling Reaming Tapping Thread Milling |
| Tolerances | ± .0002 in | |
| Part Diameter | Max 30 in 762 mm | |
| Part Length | Max 8 ft 2438.4 mm | |
| Part Width / CNC Mill / Horizontal Mill | Max 3 ft 914.4 mm | |
| Part Height / CNC Mill / Horizontal Mill | Max 3 ft 914.4 mm | |
| Maximum Part Weight | 4,000 lbs Per Component | |
| Materials (Metals) / All Grades | Alloy Steels Aluminum Aluminum /Bronze Brass Bronze Alloys Carbon Steel Cobalt Copper Duplex Inconel Low Carbon Steel | Molybdenum Monel 400/500 Nickel Stainless Steel
Titanium Tool Steel |
| Materials (Plastic Polymers) | Nylon Delrin Duplex | Peak Plastic PVC (Polyvinyl Chloride) |
| Fixtures | Three-jaw chuck Four-jaw chuck | Pallets In-House Fixtures & Tooling |
| Machinery Axis | 3 Axis 4 Axis | 5 Axis 10 Axis |
| Production Volume | 100,000+ pieces Prototype | High Volume Low Volume |
| Lead Times Available | 4 Weeks or Less Standard Turn Around 24 Hour Emergency Service | Just In Time (J.I.T.) Deliveries |
| Secondary/ Value Added Services Offered | Anodizing Coating Cost Engineering Heat Treatment Inspection Metal Sourcing Magnetic Particle (Mag Particle) NACE | Painting Part Number Engraving Sterilization Testing Tensile & Yield Welding Over-Lay Welding Ultra Sound (UT) |
| Industry Focus | Aerospace Agricultural Auto/Truck/Transportation Chemical Dental Electronic Energy Food Machine Tool | Marine Medical Military Nuclear Oil Field OEM Products OEM Parts Solar Wind Power |
| We Serve a Large Range of Industries Please Inquire | ||
| Industry Standards | ANSI American National Standards Institute ASME American Society of Mechanical Engineers ASTM American Society for Testing and Materials DOT Department of Transportation FDA Food And Drug Administration | Mil-Spec Military Specifications NRC Nuclear Regulatory Commission PED Standards Pressure Equipment Directive SAE Society of Automotive Engineers |
| Efficiency | Lights Out Manufacturing | |
| File Formats | AutoCAD (DWG) BMP Bit Mapped Graphics DXF Drawing Interchange Format, or Drawing Exchange Format GIF Graphics Interchange Format IGES Initial Graphics Exchange Specification, ANSI file format. JPG or JEPG Joint Photographic Experts Group | MasterCam 3D Model NACE North American Association of Corrosion Engineers Portable Document Format STEP Standard for the Exchange of Product Model Data TIFF Tagged Image File Format |
